Miqus Video Plus camera | Qualisys

Miqus Video Plus is a native video camera for use with your Qualisys motion capture camera system offering high-speed performance, superior quality, and unrivaled resolution in capturing movement. It streams synchronized video and gives you perfectly aligned reference video to complement your movement data.

Speed and performance redefined.

The Miqus Video Plus sets a new benchmark for video speed, delivering 40% faster capture rates than its predecessor. With an advanced parallel on-board MJPEG encoder, the camera streams synchronized, high-quality video at rapid speeds, reaching Full HD 1080p at 120 frames per second (fps) and 720p at 480 fps, ensuring no detail is missed.

Contact us
Miqus Video - feature photo

Key Features

  • High-quality color video
  • Full resolution at 2.8 MP, 1920 x 1440
  • Streams full HD at 120 fps
  • Streams 720p at 480 fps
  • Synchronized 3D data overlay
  • Daisy chained connection
  • Standalone operation or seamlessly integrate with any Qualisys mocap system

Unmatched quality and resolution.

Equipped with the latest image sensor technology, the Miqus Video Plus delivers exceptional image quality even under low-light conditions. It boasts a 30% higher resolution than standard Full HD cameras, providing full resolution at 2.8 megapixels (MP), for crystal-clear clarity with every captured motion.

Learn more
Miqus Video - feature photo

Synchronized Reference Video

Since the Miqus Video Plus calibrates and synchronizes automatically with the rest of the camera system, you will get perfectly aligned reference video without any extra effort.

Miqus Video - feature photo

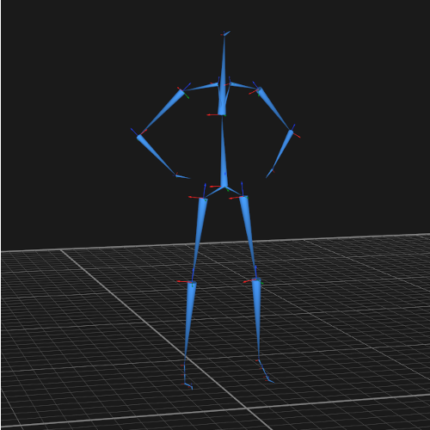

Go Markerless.

The Miqus Video Plus excels in both markerless and marker-based captures, offering precise time synchronization and multi-camera support for thorough coverage. Integrated calibration and direct streaming of compressed video allow for instantaneous skeleton processing, significantly streamlining the workflow for professionals and researchers.



Designed for professionals.

The Miqus Video Plus is equipped with an advanced image sensor that delivers exceptional color video quality and high-resolution captures. With built-in strobe lighting featuring white high-power LEDs, automatic synchronization with other Miqus and Arqus cameras, and onboard compression using MJPEG, the Miqus Video Plus simplifies the capture process while maximizing performance.

“Beyond research, real-time motion, video and force data are integrated using these technologies into the daily training environment to provide real-time feedback to coaches, athletes, and sport scientists in preparation for the Olympics and Paralympics.”

Lindsay Musalem Sport Biomechanist, Canadian Sport Institute Ontario (CSIO)
Lindsay Musalem

Tutorials - Qualisys Synchronized Video Cameras

Combined Marker-based and Markerless Cameras

How to use Qualisys Video Cameras

Watch Now

Gait Analysis Video Overlay

How to use create an overlay video.

Watch Now

Are you interested?

Get in touch with us and learn more.

  • Hidden

Camera specification

Camera Full resolution / 2.8 MP
1920 × 14401		 Full HD / 2 MP
1920 × 10801		 HD / 1 MP
960 × 7201		 0.5 MP
960 × 5401		 Color
4:3 1:1 16:9 4:3 1:1 4:3 1:1 16:9 4:3 1:1
100 fps 120 fps 120 fps 160 fps 180 fps 400 fps 480 fps 440 fps 480 fps 480 fps


Camera body

Dimensions: 14.0 × 8.7 × 8.4 cm (5.5 × 3.4 × 3.3 in)
Weight2: ~700 g (1.54 lbs)

Miqus dimensions

Convection cooled, custom die-cast aluminum and Polycarbonate.
Comes with Kensington lock for preventing theft

Available housings
  • Standard

Camera

Camera output
  • Color / monochrome video
  • High-speed video

Lens

Adjustable focus & f-stop.
Field of view3: 72° 51°, or 40°.

Communication

1-connector Daisy-chained Gigabit Ethernet & Power

External sync
  • Possible with external Sync Unit
1 Refers to the largest (left) aspect ratio for each mode.
2 Varies slightly depending on lens choice.
3 The numbers shown refer to horizontal field of view.
