Miqus Hybrid mocap camera

Future-proof your next motion capture camera investment. With the Miqus Hybrid camera you can do both marker-based and markerless tracking integrated into leading markerless tracking solutions.

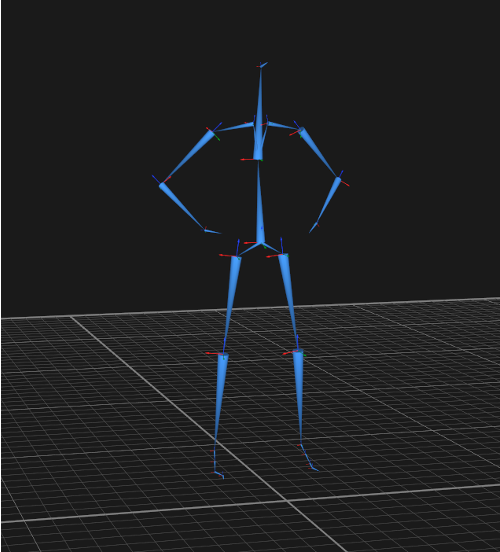

Miqus Hybrid - feature photo

Perform marker-based tracking and markerless tracking with the same camera system

The Miqus Hybrid camera is a dual-mode camera with a 2MP color sensor, capable of either streaming full HD color video at 85 frames per second or streaming marker data at 340 frames per second.

In marker mode, it illuminates passive markers with its infrared strobe, while also being compatible with Qualisys’ active markers.

Read more

Research on markerless motion capture

Miqus Hybrid is the perfect choice to quickly get started with the things that matter.

Together with QTM, the Miqus Hybrid solution takes care of the necessary tasks to get a multi-camera markerless research project quickly off the ground as well as providing the ground truth marker-based data for validation of the markerless algorithms.

Key features

  • Markerless and marker-based tracking
  • Two modes: marker-mode or video-mode
  • Marker stream: 2 MP @ 340 fps
  • Video stream: 2 MP @ 85 fps
  • Fast setup with combined power & Ethernet
Miqus Hybrid - feature photo

When and how to use Miqus Hybrid

Use Miqus Hybrid in marker mode to perform marker-based motion capture just like with any other marker camera.

Measurement range in bright sunlight will be shorter compared to a normal Miqus camera, but in all other conditions, it will perform equal to Miqus M3.

Use Miqus Hybrid in video mode to record video in the same way as with Miqus Video

Miqus Video

Miqus Hybrid

Miqus M1, M3, & M5
Marker-based motion capture
Markerless motion capture

Want to know more?

To learn more about the Miqus Hybrid camera and the markerless solutions we offer, please fill out the form below.

Camera Resolution

(MP)

 Resolution

(Pixels)

 Frame Rate
(Marker Mode)		 Frame Rate
(Full HD Video)		 Frame Rate
(HD 720 Video)		 Frame Rate
(0.5 MP Video)		 Frame Rate
(VGA)		 Field-of-view
(Default)

Miqus Color Video

 2MP 1920 x 1088 85 fps 180 fps 330 fps 550 fps 61° x 37°

Miqus Hybrid

 2 MP 1920 x 1088 340 fps 85 fps 180 fps 330 fps 550 fps 61° x 37°

Miqus M3

 2 MP 1824 x 1088 340 fps 64° x 41°
